Equipment’s / Products

• * Suction dredging, Cutter suction dredging, bucket dredging, clamshell dredging, and clearing works.
• * Dredge available with all types of attachments for various waterway clearing operations.
• * Highly efficient engine-hydraulic power system optimally configured for low fuel consumption (Less operating cost).
• * Powerful twin auger propulsion drives (infinitely variable speed control, forward and reverse).
• * Whole dredger and accessories transported in one 40 feet trailer.
• * There are three types of dredgers.

Below are dredgers of various Specifications:

Our Video Gallery

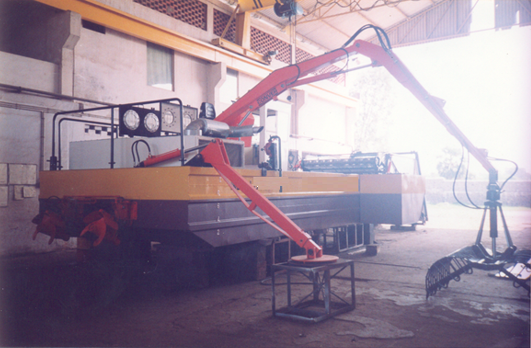

Indigenous Amphibian Cutter Suction Dredger

Specification	Details
Length O.A.	10 mtrs
Width	3.25 mtrs
Height above water level	2.25 mtrs
Max Draft	0.8 mtrs
Water tight Compartments	7
Stabilizers	4
Back hoe	300 lit
Digging depth	4.5 mtrs
Dredge p/p Capacity	600 to 700 cu.m/hr at 10 mtrs head

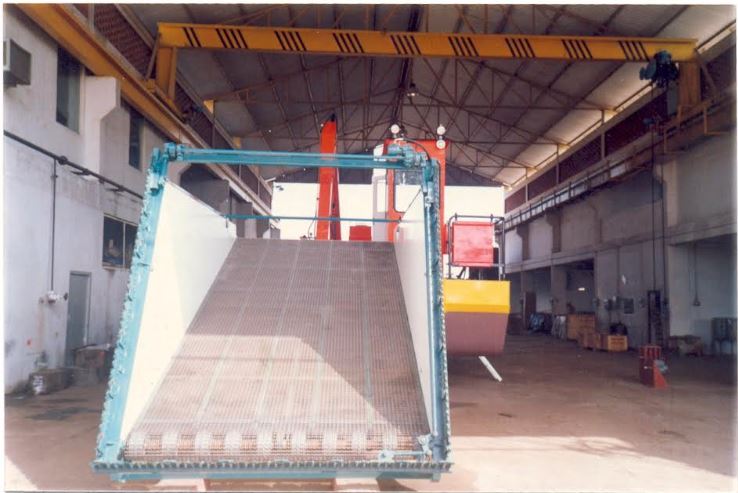

Weed Harvester with Conveyor

Specification	Details
Length	7.30 Mtrs
Breadth	3.35 Mtrs
Height	1.83 Mtrs
Draft (Light)	0.36 Mtrs
Draft (Loaded)	0.58 Mtrs
Capacity	14 Cu.m

Self Propelled Bottom Opening Hopper Barge

Specification	Details
Length Overall	9.5 mtrs
Breadth Moulded	3.6 mtrs
Depth Moulded	1.5 mtr
Draft	0.8 mtr (appr.)
Hopper Capacity	10 T
Main Engine	1 x 40 HP @1800 rpm
Max. Speed	4 knot (appr.)

Hollow Utility Barge

Specification	Details
Hull Length	5 mtrs
Overall Width	2 mtrs
Height Above Water Level	400 mm
Overall Height	1.0 mtr
Free Board	400 mm
Slip-Safe Deck	5 mm thick chequered plate
Bollards as Required	At four corners
Cathodic Protection Underwater	4 Nos

Hydraulic Powered Submersible Cutter Pump

This Hydraulic Powered Submersible Cutter Pump has certain typical features, which are widely used in various applications such as:

• * Dredging of rivers, lakes, ponds, estuary, canals, and lagers.
• * Removal of materials from aggregate washing.
• * Transfer of mud, slurry, thick sand, clay, etc.

Specification	Details
Liquid	Mud or Clay or Sand water
Specific Gravity	1.3
Discharge (Output)	700 cu.mtr per hour
Head	36 mtrs
Solid Size	75 mm
Impeller	3 vaned closed / Ø 440mm
Bore	250 mm
Motor Output	115 Kw (156 HP)
Oil Pressure	300 bar
Motor Displacement	160 cc

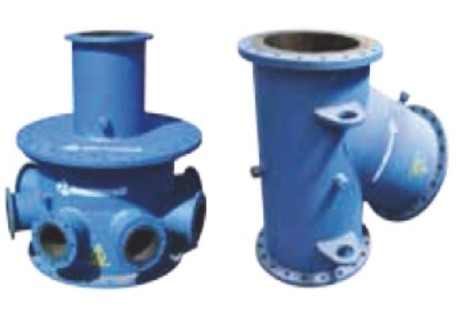

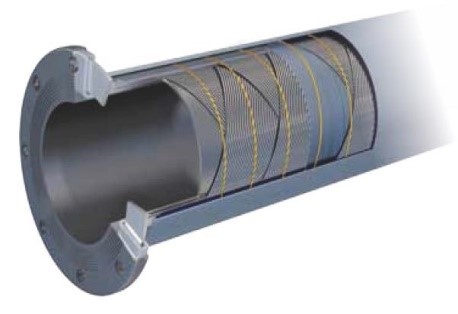

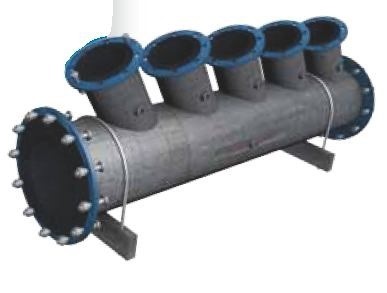

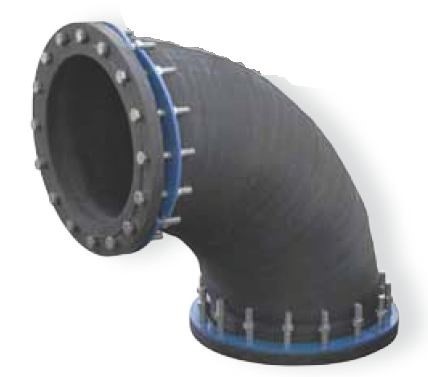

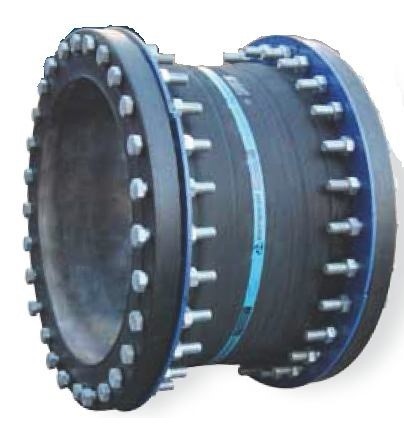

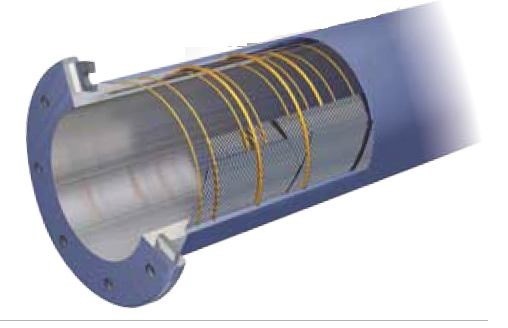

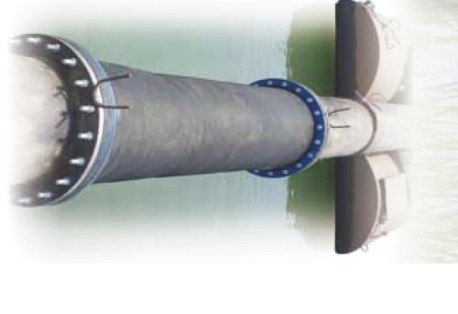

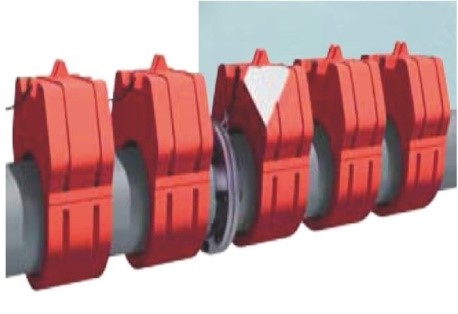

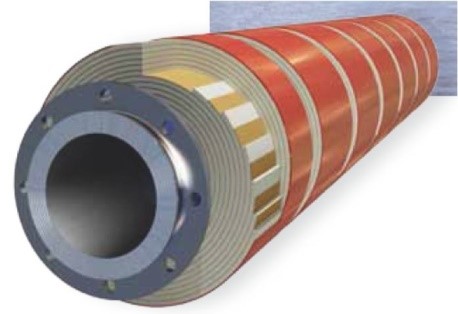

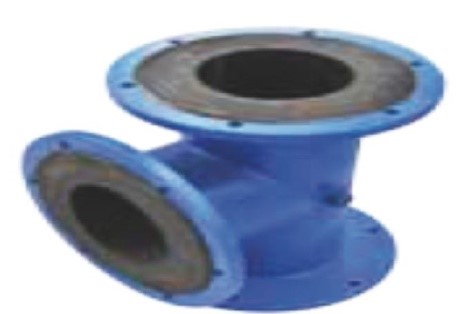

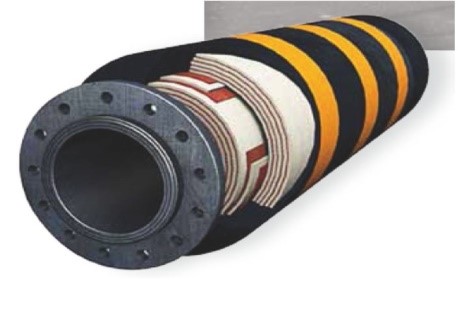

PIPELINES

Rubber compounds are manufactured in-house using high-quality raw materials with a highly controlled manufacturing process. Pipelines produced by our company have a lifetime up to 5 times longer and weigh 2-2.5 times less compared to steel pipelines.

Using our product pipelines is much more advantageous compared to steel ones since economic and process benefits may be achieved, such as:

• * Buoyancy, flexibility, lack of ball connections (ensures reduced hydraulic losses up to 20%).
• * Easy to mount and dismantle, enabling usage in small rivers and offshore areas.
• * Applied as part of a floating dredge ship, reducing energy intensity of hydro transport up to 15% and operating costs.
• * Less vibration resulting from delivery pumps, compensation of heat, linear and temperature expansion.

Dredger Spares

Spares for Dredgers is a key factor in operations. Our group efficiently handles the supply of both indigenous and imported spares with minimal downtime, ensuring smooth operation for various organizations.

We provide and replace the following dredger spares on priority:

• Dredge Pump and its spares
• Hydraulic Pump & its spares
• Winches brake
• Engine spares
• Pumps & Motors, its controls
• Electrical items
• Engine tool room spares
• Cutter motor and Cutter blades for cutters
• Safety equipment for shipping industries
• Wire ropes and Hawses
• General deck items and Nautical equipment
